A supplier for all your ATEX needs

Whether it is stainless steel, aluminium or plastic, our universal enclosures offer your assemblies excellent protection in industrial or explosive risk zones.
With the relevant degrees of protection, these robust Weidmüller products can be accessorised to suit all your various field applications.

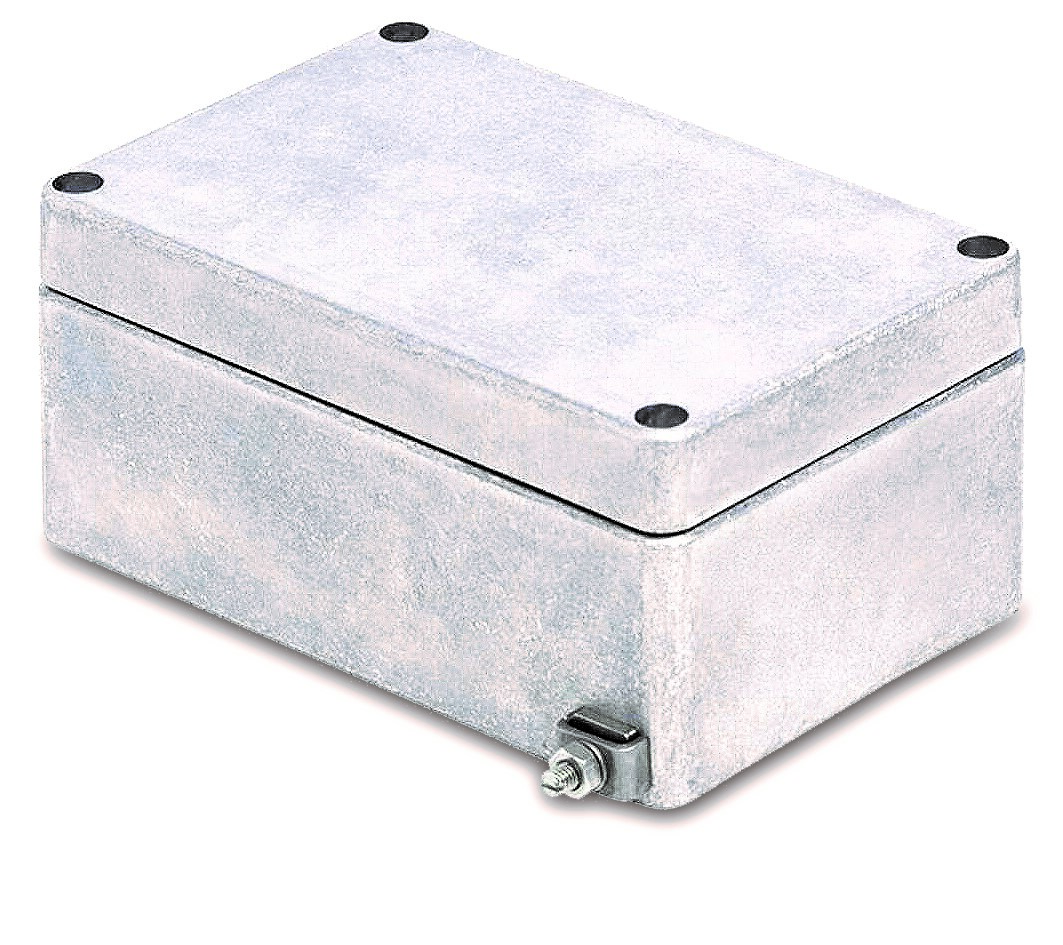

The Klippon® K

This extensive aluminium enclosure range features 19 different sizes in two surface finishes, powder-coated and natural. AP Haslam can assemble and supply these enclosures fitted with all necessary terminals and cable glands to your specifications.

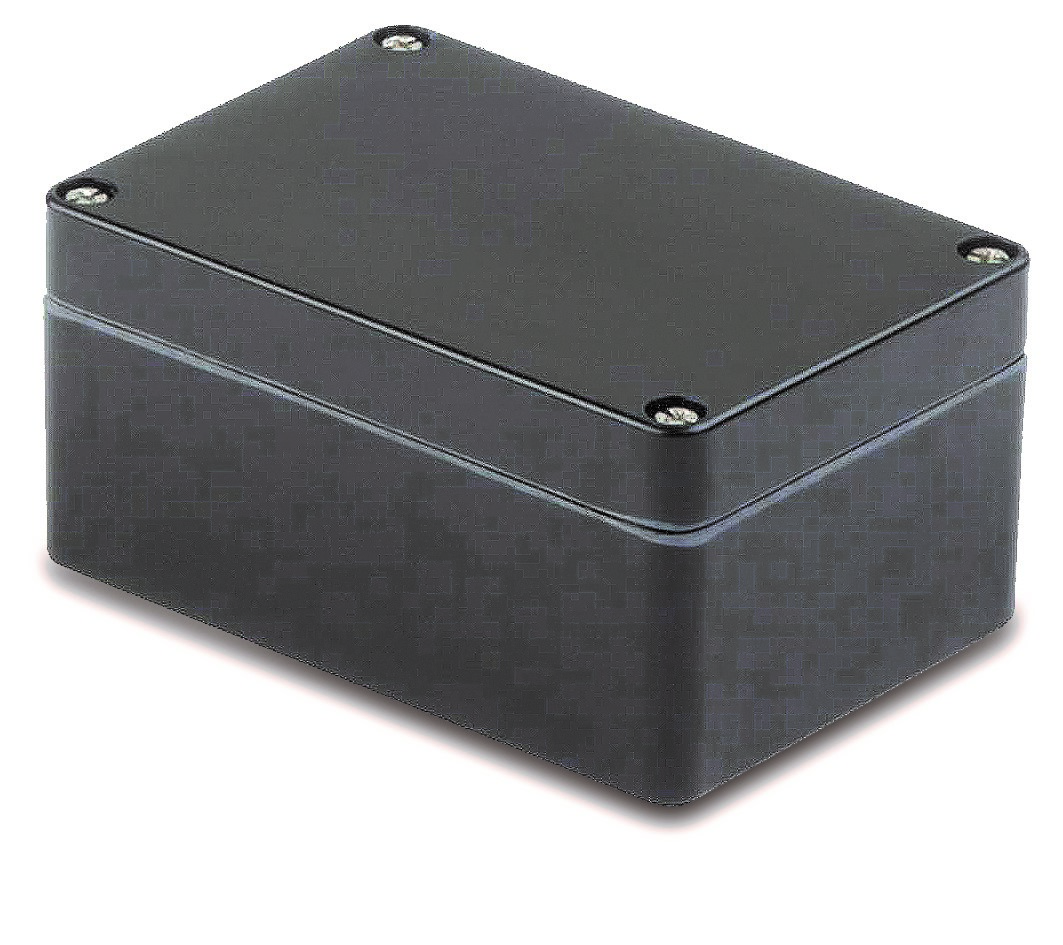

The Klippon® POK

Made from a high-quality glass-fibre reinforced polyester, these enclosures are ideal for environments where corrosion and impact resistance – and a high IP protection class – are required. Available in 17 sizes, there are two standard finishes, Grey and Black.

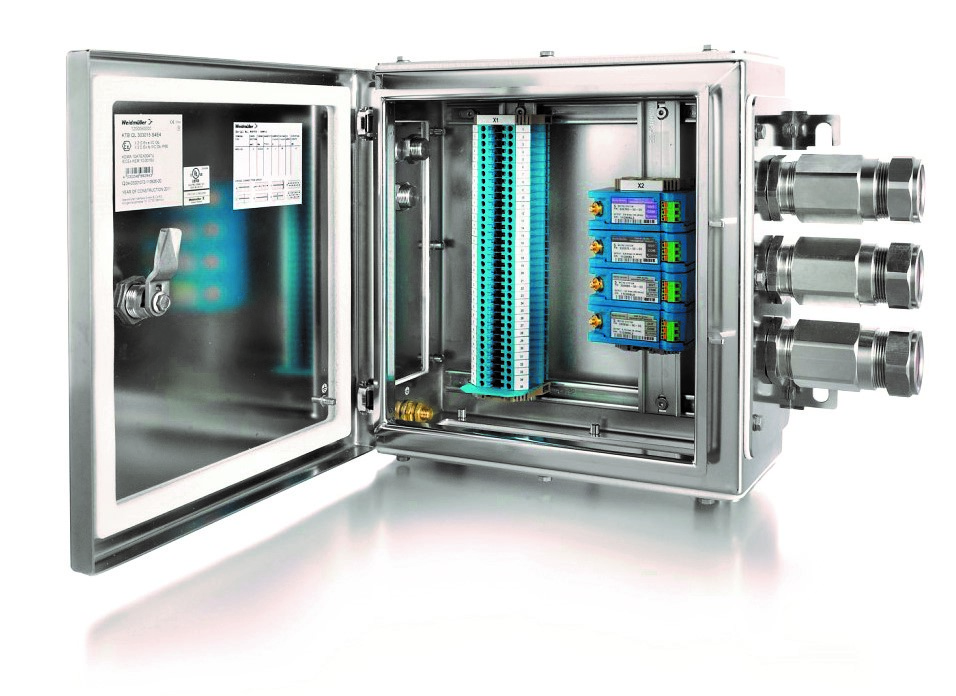

The Klippon® TB

Featuring excellent performance under the most difficult environmental conditions, these enclosures comply with the stricter requirements of potentially explosive atmospheres found in the process or power generation industries.
An electro-polished surface adds further protection against dirt and moisture and is best suited to areas such as power generation including oil, gas & petro-chemical industries.
A ‘Multi Hinged’ version of this enclosure is also available – the Klippon® TB MH.

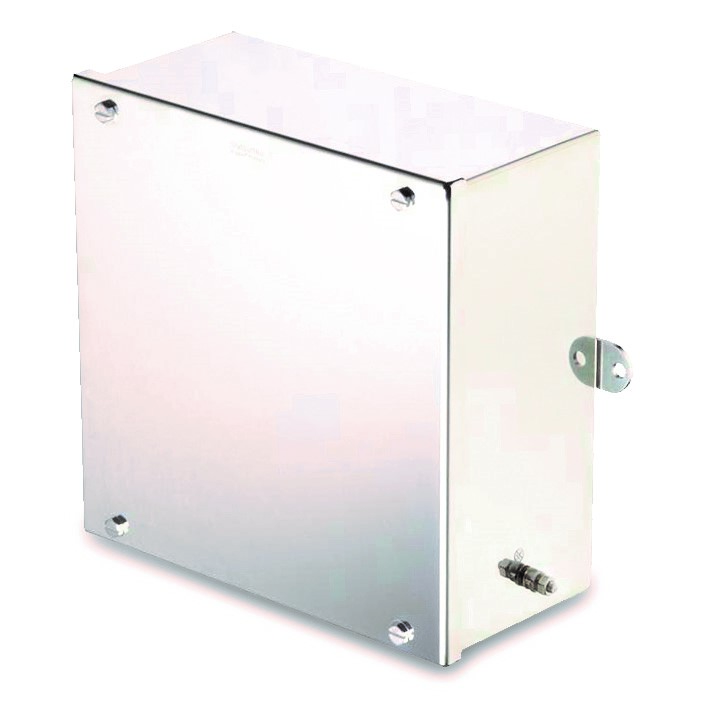

The Small Terminal Box (STB) is suited for the energy, process or transportation industries and is ideal where space is limited.

Speed and accuracy into your hands..

AP Haslam’s Perforex BC 1007 HS adds to the speed and efficiency of our Workshop when it comes to supplying Enclosures for Industrial and Hazardous areas.  Our Rittal Perforex CNC Machining Centre can handle panels up to 3600×2300 mm

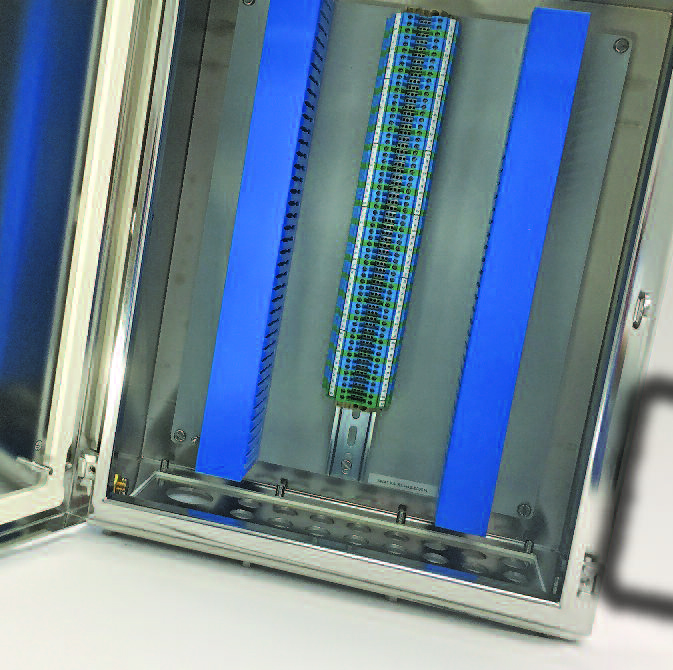

High quality ATEX solutions – built for you!

We build for you!

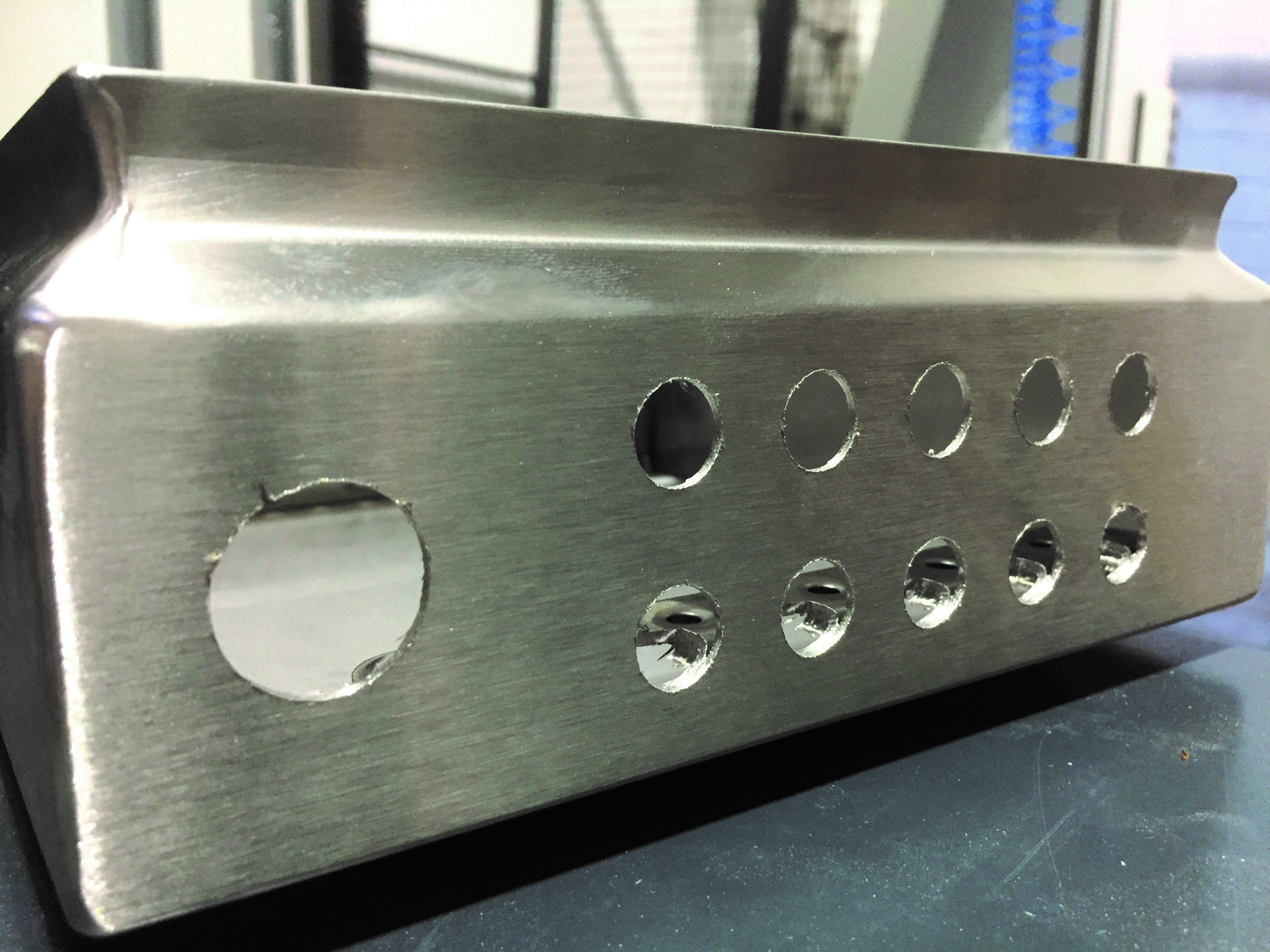

Our NEW Rittal Perforex BC 1007 HS

Capable of manufacturing all your panel requirements

·  CNC programming ensures accuracy and repeatability every time, short or long runs.
·  Drilling, Thread-tapping and Milling from over 20 preloaded tools.
·  Aluminium, Steel, Stainless steel, Plastic, Copper.
·  Call TODAY for a demonstration!

AP Haslam’s Perforex BC 1007 HS from Rittal, adds to the speed and efficiency of our Workshop when it comes to supplying Enclosures for Industrial and Hazardous areas.

With up to 20 tools in the magazine for drilling, tapping and milling, the Perforex machine enables hours of production work to be completed with increased speed, reducing the preparation time with its sophisticated software and preinstalled panel drawings.

The Perforex BC 1007 HS can handle panels up to 3600×2300 mm and since programming is faster than manual marking, the system provides obvious advantages from single items to big batch production.

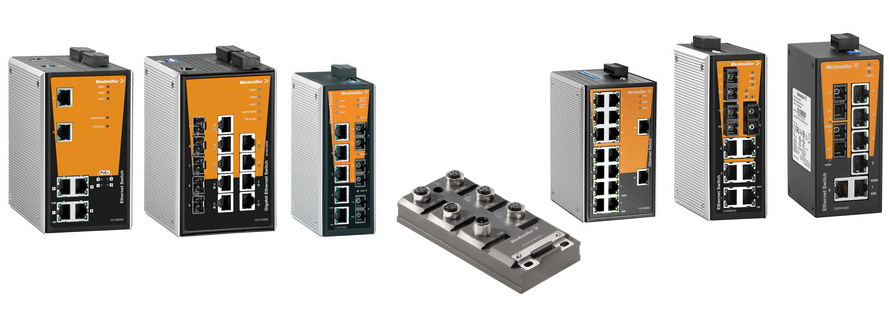

Weidmüller Ethernet

Active Industrial Ethernet

Weidmüller Industrial Ethernet components are the perfect link for the data communication between Ethernet enabled devices in industrial automation.
By supporting various topologies and protocols, they can be used in many industrial applications.

Weidmüller. Your partner for industrial Ethernet solutions.

---

BasicLine unmanaged switches

• Variations with 5 or 8 ports
• Variations for Gigabit Ethernet
• Sturdy metal housing
• Compact design
• Two redundant power inputs 12/24/48 V DC
• Variations with copper and fibre-­optic interface (multimode and singlemode)
• Extensive approvals: CE, FCC, cULus, Class I Div. 2 / ATEX Zone 2, DNV-­GL

---

The Value Line

The Value Line from Weidmüller consists of unmanaged and managed switches in a high-­quality IP 30 protected metal housing. The equipment can be delivered with Fast Ethernet and Gigabit Ethernet ports. Value Line managed switches support a variety of helpful management functions, such as fast ring redundancy, port-based VLAN, QoS, RMON, bandwidth management, port mirroring and error notification via e-­mail or a relay. The ring redundancy can be simply set via the web based management interface, or with a dip switch found on the top of the switch.

• Unmanaged Plug & Play switches in a high-­quality metal housing (IP 30)
• Price-­conscious middle-­range
• Managed switches for the entry into a configurable network infrastructure
• Unmanaged full Gigabit switch with 8 ports
• Approvals: CE, FCC, cULus, Class I Div. 2 / ATEX, DNV / GL

---

The Premium Line

Weidmüller's Premium Line consists of high-­end switches with advanced management and security features. It is suitable for demanding network solutions. The equipment can be delivered with Fast Ethernet or Gigabit Ethernet ports.
One variety is fitted with Fast Ethernet and Power-­over-­Ethernet ports. With their advanced ring redundancy technology (recovery time ≤ 20 ms), these devices raise the reliability and availability of your industrial networks.
The optional SFP transceiver can be fitted offering a high degree of flexibility. Gigabit versions permit use in networks with a high volume of communications.

• Managed Fast Ethernet versions in a high-­quality metal housing (IP 30)
• Managed Power-­over-­Ethernet (PoE) switch with 6 Fast Ethernet ports, 4 of them PoE+ ports
• Versions with 10 or 18 ports and Gigabit uplink ports
• Full Gigabit switch with 9 ports
• Supports all standard TCP/IP-­based protocols in industrial networks (for example Ethernet/IP, Modbus/TCP)
• Integrated redundancy mechanisms (recovery time ≤ 20 ms) increase the reliability in network ring structures
• Approvals: CE, FCC, cULus, Class I Div. 2 / ATEX, DNV / GL

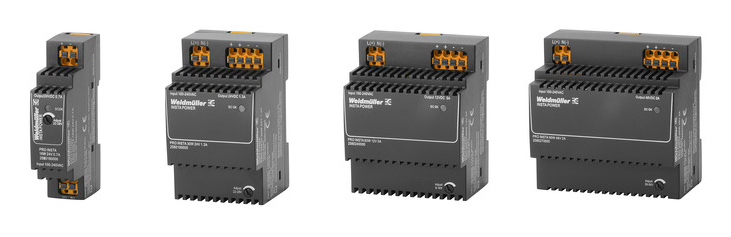

Weidmüller INSTA-POWER – compact, highly efficient and reliable

The single-­phase INSTA-POWER switched mode power supplies are characterised by a large power spectrum, a compact design and a good price-­performance ratio.

They are suitable for temperature ranges from 25°C to +70°C, have international approvals and a wide range voltage input. This makes them suitable for a wide range of applications. This also includes signal and telecommunication systems as well as automation systems with low power requirements up to 96 watts.

Key benefits

Weidmüller PROeco ‘the economical solution’

Switched mode power supplies with above average performance values can create real competitive advantages, especially in series machine construction. They designed the PROeco series to be particularly efficient.

With an installation depth of max. 120mm, you can easily insert the devices even into flat control boxes. And you also achieve space savings of up to 50% in width. At the same time, all basic functions are included in the compact format.

Key benefits

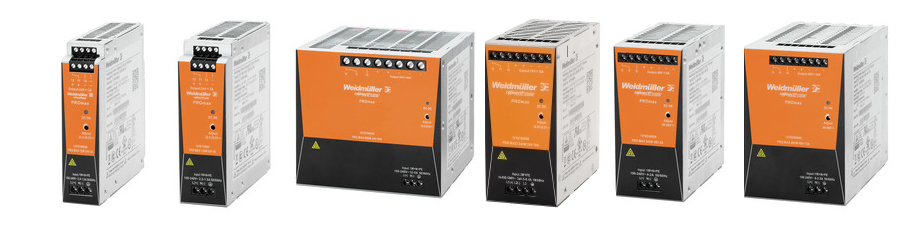

Weidmüller PROmax ‘the powerhouse’

The powerful switched mode power supplies of the PROmax series are designed for demanding mechanical engineering applications.

They show their strengths in plant engineering, in the food and beverage industry, in automotive engineering and even in plants of the process industry.

Permanent overloads up to 20% of nominal current at 45 ¡C or short-­term peak loads until 300% of nominal current are easily absorbed by PROmax. With start-­up temperatures as low as 25°C, the power supplies are particularly robust.

Thanks to their small overall width, they also fit into limited space conditions.

A wide range of approvals make PROmax suitable for worldwide use.

Key benefits

• High load capacity with constant output powers up to 120% at temperatures up to + 45°C and high output peaks up to 300%
• Universally applicable with variants from 3 A to 40 A output current and output voltages from 5V DC to 48V DC
• Particularly robust with start-­up temperatures of 25°C

For more information and data sheet check out the Weidmüller PROmax Part Number: 1478120000

Weidmüller PROtop ‘the innovative one’

If reliable availability and energy efficiency are required even under adverse conditions or in hard-­to-­reach locations, then our PROtop family is the right choice.

The predestined solution.

The powerful DCL technology gives the switched mode power supply units an outstanding Dynamic range – ideal for reliable pulse triggering of miniature and standard circuit breakers or as additional energy for powerful motor starts.

Key benefits

• Safe tripping of miniature circuit breakers due to peak current reserve of 600% for 20 ms
• Efficiencies of up to 95.4% lead to low heat losses and extremely space saving housings
• New data interface makes the PROtop power supplies fit for digitization
• Start-­up temperatures as low as 40°C (for EX/C1D2 version)
• Redundancy without diode module

For more information and data sheet check out the Weidmüller PROtop Part number: 2466900000

What is ATEX?

A potentially explosive atmosphere (ATEX – ATmosphères EXplosives) exists when a volatile mixture of air, gas, vapour, mist or dust combines in a way that can ignite under certain conditions.

Typical circumstances occur in offshore oil & gas platforms, petrochemical plants, mines, distilleries and flour mills, amongst others.

The European ATEX Directive defines the essential health and safety requirements – and conformity assessment procedures – to be applied before products are placed on the EU market.

European countries – and those who apply the Directive’s requirements – are responsible for implementation and enforcement, as well as the management of notified bodies.

As a appointed assembler of ATEX products for Weidmüller, our customers can be confident that AP Haslam are independently audited to ensure we adhere to the relevant ATEX Directives and are compliant to the highest ATEX standards.

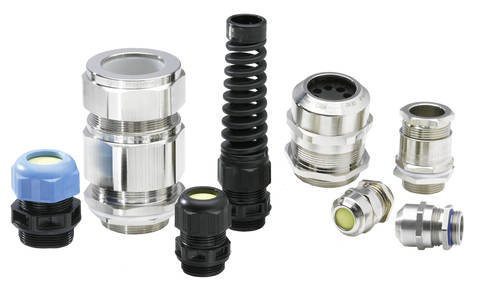

Innovative Cable Glands by WISKA

Despite their simple look, WISKA cable glands are components of the highest technology. They are the result of decades of development and innovative expertise. WISKA cable glands are used worldwide in various branches of industry and ensure technical systems to operate reliably.

WISKA’s product portfolio comprises cable glands made from plastic, stainless steel and brass, and in many different designs, from standard to highly specific models. Among the product range are threadless cable entries and a wide array of accessories. WISKA can also make customised designs for customers with specific requirements.

The benefits of WISKA cable glands:

• Highest quality and reliability
• Modular design and a wide range of applications
• Installation and service expenses are saved

Cable glands

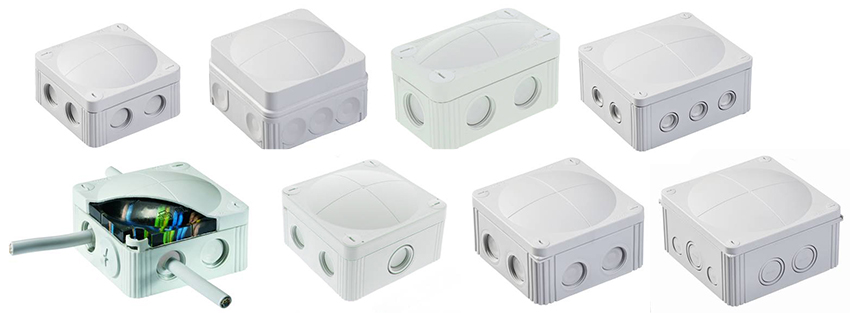

Wiska COMBI^® Series

Features of the COMBI^® series at a glance:

High-­quality material of the COMBI^® junction boxes is UV-­ and ozone resistant, therefore for inside as well as outside installations.

High protection class IP66. With cable gland, even IP67

Captive and rust-­free quick-­release lid screws, closing of the box with only a quarter turn (COMBI^® 206, 308, 407, 607, 1010, 1210)

Self-­sealing membranes on the rear enable a clean assembly for cable outputs from the wall (COMBI^® 108, 116, 206, 407, 607, 1210)

Flame-­retardant and halogen-­free, weather-­proof, resistant to ultraviolet, shatter proof, impact-­resistant

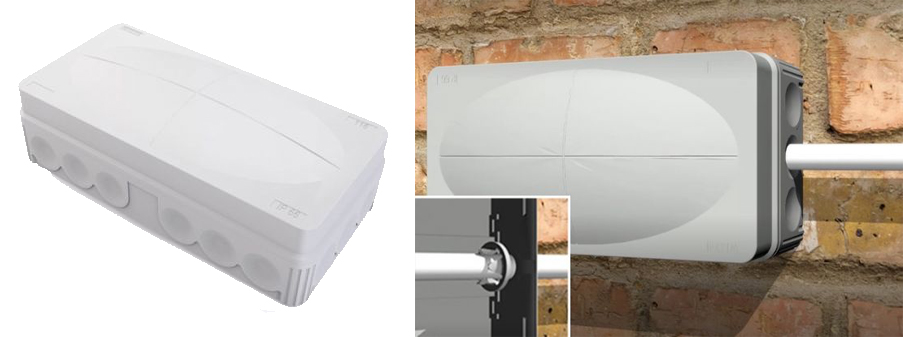

Threadless COMBI^® junction boxes

For a fast and easy installation

The threadless COMBI^® junction boxes convince with their fast installation through the integrated membrane. For optional cable retention we offer our cable retention clamp which is quick and easy to use, helping to secure your cables safely. Just push it around the cable inside the box and it prevents the cable from being pulled out.

A clever accessory that saves you time.

Available in the following sizes: COMBI^® 108 and 116

Twice the size:

Measuring 152 x 76 millimeters the new COMBI^® 116 is twice as big as the COMBI^® 108 and therefore offers additional installation space and flexibility at IP66.

WISKA – Your benefits with CONMAXX^®

WISKA is introducing a cable entry system especially designed for switchboard installations: CONMAXX^®. The innovative 3-component modular system offers customers a whole new dimension of flexibility.

The CONMAXX^® system consists of a closed frame, variable grid inserts and conical sealing elements. The three components can be compiled individually according to requirement and application, as if in a modular system.
Even subsequent, individual changes to the wiring are no problem – without any laborious opening and closing. CONMAXX^® provides a better and easier solution to any installation requirement!

CONMAXX^® Frame

The CONMAXX^® Frame is stable in shape and fits standardized industrial connector cutouts. Due to its closed construction there is no need for unscrewing to insert or change cables.

CONMAXX^®: Three components – endless product variants

About 100 different seals, four frame sizes and different grid inserts enable extremely flexible and individual electrical installation. Even solutions for special cables, sleeves, as well as pre-fabricated cables and wires are no problem with CONMAXX^®. The many possible combinations also reduce storage costs.

Watch Wiska's video and see for yourself the advantages of the CONMAXX® system!

The CONMAXX® Frame is available in:
CF4: 70 x 81 mm

CF6: 70 x 106 mm

CF8: 70 x 126 mm

CF10: 70 x 153 mm
